ESP32 Pixel

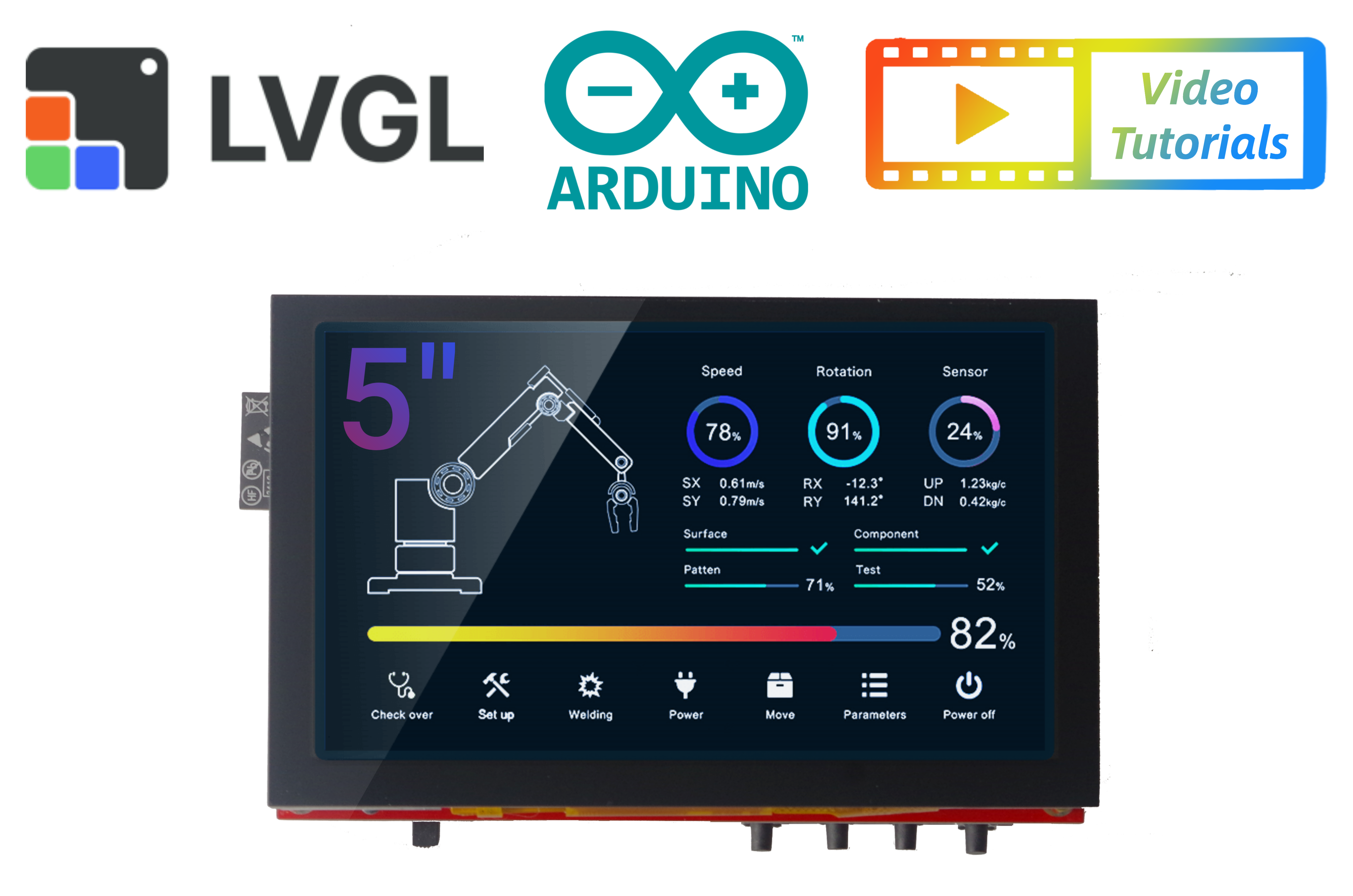

The ESP32 Pixel 5.0-inch display module is a high-performance capacitive touchscreen solution equipped with an 800×480 resolution LCD screen. Powered by the ESP32-S3-WROOM-1-N16R8 module as its main controller, it features Xtensa® LX7 a dual-core 32-bit microprocessor, integrated WiFi and Bluetooth connectivity, and a clock speed of up to 240MHz. This combination delivers robust performance for diverse applications, particularly in IoT devices and smart systems.

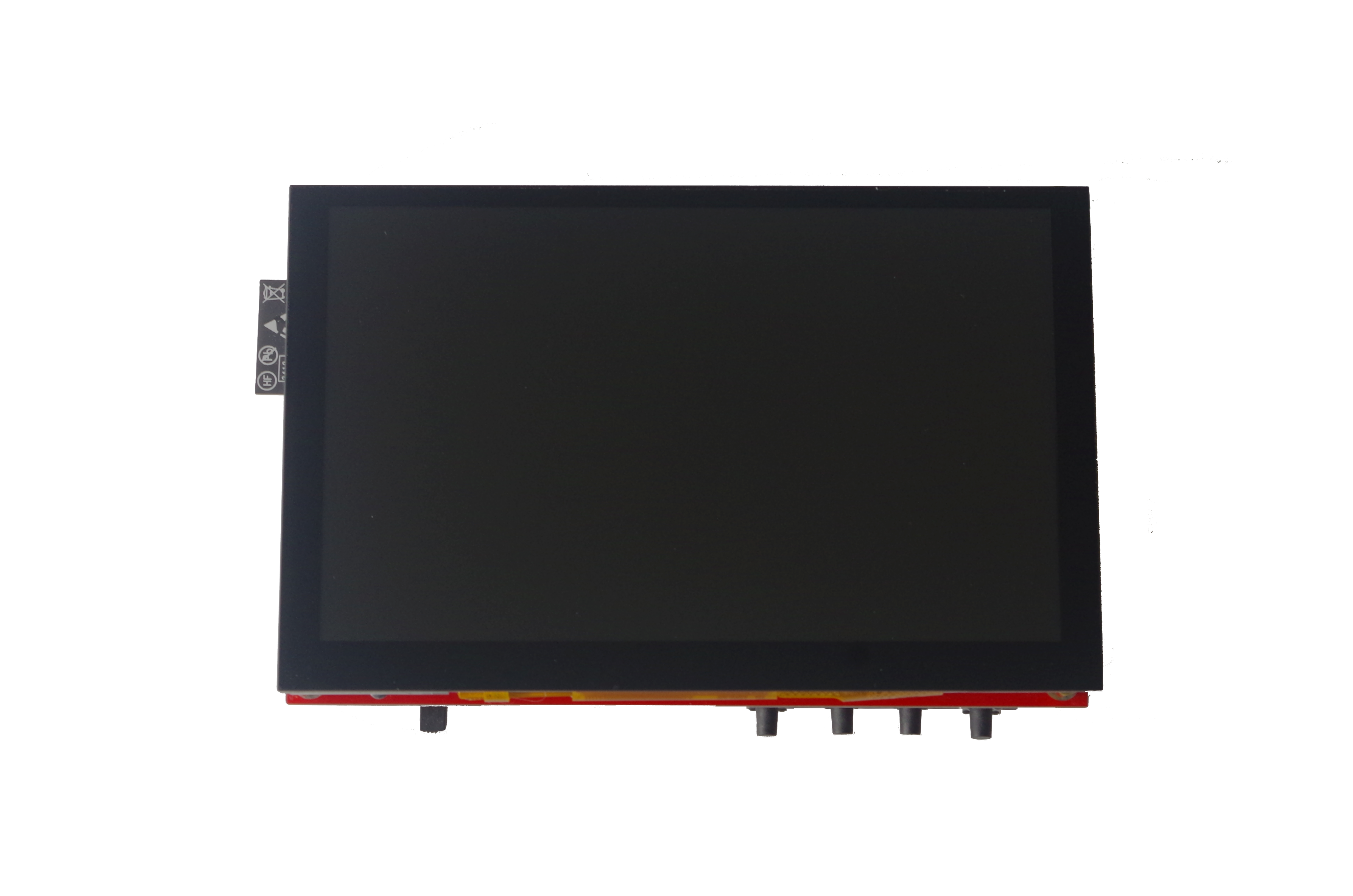

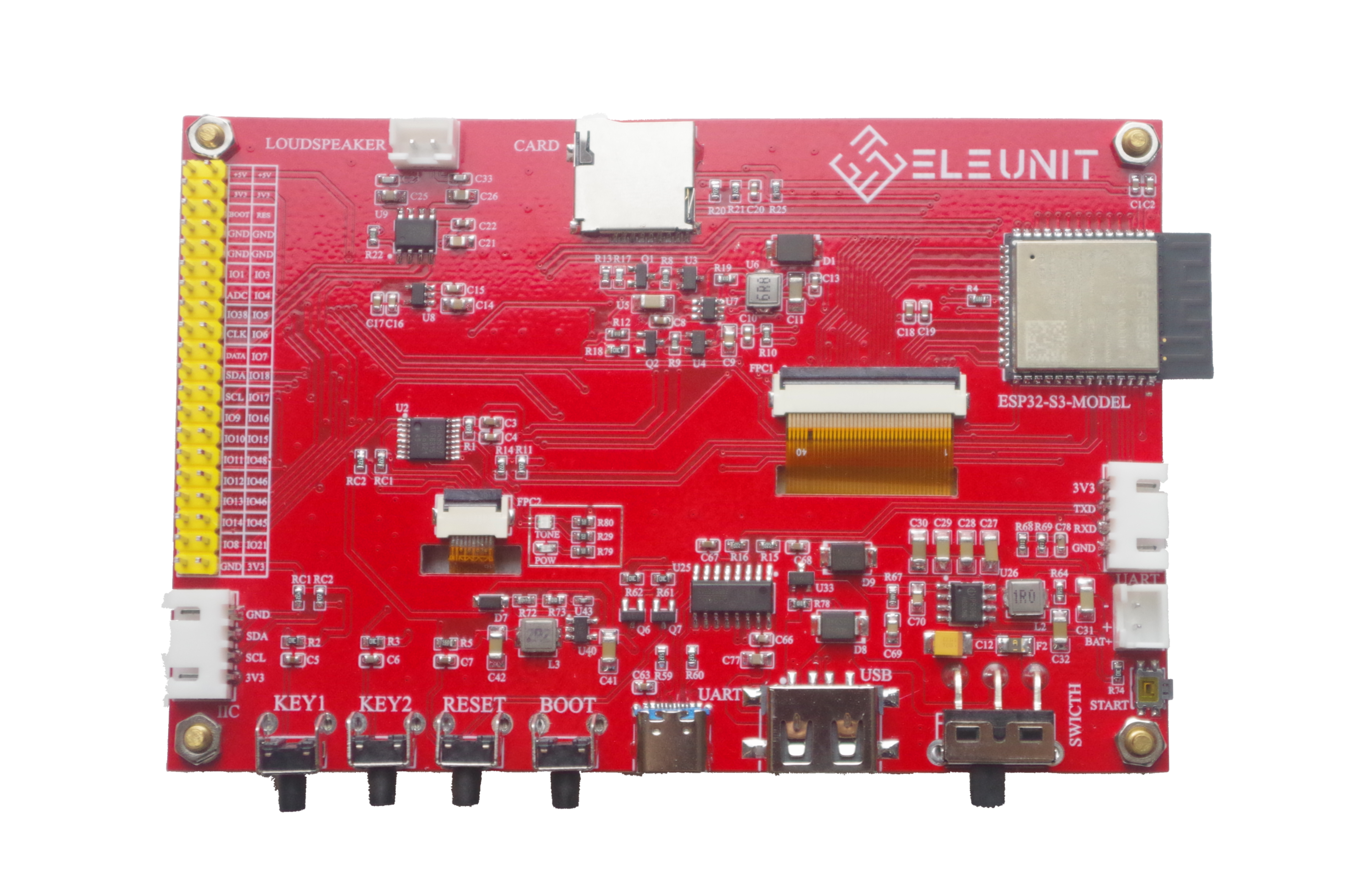

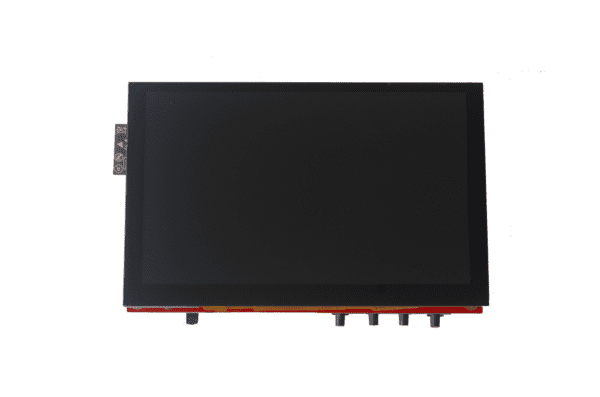

The module includes a 5.0-inch LCD display panel and a driver board. The screen supports capacitive touchscreen technology, while the board integrates a built-in TF card slot, UART, SPI, I²C, USB, speaker, and battery interfaces, offering extensive expandability. It is compatible with popular development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and supports the LVGL graphics library and openHASP protocol. Developers can customize UI interfaces and rapidly prototype engaging projects, significantly accelerating development cycles.

Designed for versatility, the ESP32 Pixel 5.0-inch display module is ideal for automotive infotainment systems, medical equipment, smart homes, industrial automation, consumer electronics, home automation, renewable energy systems, and IoT devices. Its rich interface options and scalable design cater to multifaceted industry needs, providing a comprehensive solution for next-generation applications.

​Key Features:​​

• ​​Display​​: 5.0-inch LCD with 800×480 resolution, capacitive touchscreen.
• ​​Processing Power​​: Xtensa® LX7 MCU @240MHz, ESP32-S3-WROOM-1-N16R8 module.
• ​​Connectivity​​: WiFi, Bluetooth, UART, SPI, I²C, USB, TF card slot, and battery interface.
• ​​Development Support​​: Arduino, ESP-IDF, Lua RTOS, Micro Python; LVGL library & openHASP compatible.
• ​​Applications​​: Automotive, IoT, healthcare, industrial, smart home, and consumer electronics.
• Tutorial: 16 Video lessons guide you from 0 to 1.
